Metric Round Head Knob

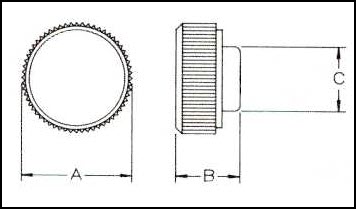

Metric Round Head Knob Diagrammatic



Description
A
B
C
Fits Screw
Quote
M3
9.530 (+/- 0.79)
5.160 (+/- 0.79)
8.330 (+/- 0.79)
M3
M4
12.700 (+/- 0.79)
5.560 (+/- 0.79)
9.530 (+/- 0.79)
M4
M5
16.600 (+/- 0.79)
6.350 (+/- 0.79)
10.720 (+/- 0.79)
M5
M6
19.050 (+/- 0.79)
7.930 (+/- 0.79)
12.700 (+/- 0.79)
M6
M6
25.400 (+/- 0.79)
8.330 (+/- 0.79)
12.700 (+/- 0.79)
M6
M8
25.400 (+/- 0.79)
9.920 (+/- 0.79)
15.080 (+/- 0.79)
M8
