Slt Pan Machine Screws

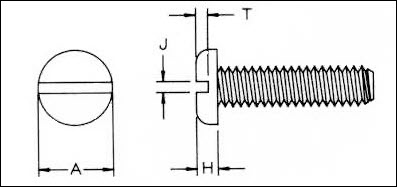

Slt Pan Machine Screws Diagrammatic

Description
Thread Size
A
H
J
T
Length
Quote
164 X 0.25
164
.130 - .142
.038 - .046
.019 - .026
.018 - .027
0.250
164 X 0.75
164
.130 - .142
.038 - .046
.019 - .026
.018 - .027
0.750
172 X 0.25
172
.130 - .142
.038 - .046
.019 - .026
.018 - .027
0.250
172 X 0.375
172
.130 - .142
.038 - .046
.019 - .026
.018 - .027
0.375
172 X 0.5
172
.130 - .142
.038 - .046
.019 - .026
.018 - .027
0.500
256 X 0.062
256
.155 - .167
.045 - .053
.023 - .031
.022 - .031
0.062
256 X 0.094
256
.155 - .167
.045 - .053
.023 - .031
.022 - .031
0.093
256 X 0.125
256
.155 - .167
.045 - .053
.023 - .031
.022 - .031
0.125
256 X 0.156
256
.155 - .167
.045 - .053
.023 - .031
.022 - .031
0.156
256 X 0.187
256
.155 - .167
.045 - .053
.023 - .031
.022 - .031
0.187
256 X 0.25
256
.155 - .167
.045 - .053
.023 - .031
.022 - .031
0.250
256 X 0.281
256
.155 - .167
.045 - .053
.023 - .031
.022 - .031
0.281
256 X 0.312
256
.155 - .167
.045 - .053
.023 - .031
.022 - .031
0.312
256 X 0.375
256
.155 - .167
.045 - .053
.023 - .031
.022 - .031
0.375
256 X 0.391
256
.155 - .167
.045 - .053
.023 - .031
.022 - .031
0.390
256 X 0.437
256
.155 - .167
.045 - .053
.023 - .031
.022 - .031
0.437
256 X 0.5
256
.155 - .167
.045 - .053
.023 - .031
.022 - .031
0.500
256 X 0.562
256
.155 - .167
.045 - .053
.023 - .031
.022 - .031
0.562
256 X 0.625
256
.155 - .167
.045 - .053
.023 - .031
.022 - .031
0.625
256 X 0.75
256
.155 - .167
.045 - .053
.023 - .031
.022 - .031
0.750
256 X 0.875
256
.155 - .167
.045 - .053
.023 - .031
.022 - .031
0.875
256 X 1
256
.155 - .167
.045 - .053
.023 - .031
.022 - .031
1.000
256 X 1.125
256
.155 - .167
.045 - .053
.023 - .031
.022 - .031
1.125
264 X 0.187
264
.155 - .167
.045 - .053
.023 - .031
.022 - .031
0.187
264 X 0.375
264
.155 - .167
.045 - .053
.023 - .031
.022 - .031
0.375
436 X 0.5
436
.205 - .219
.058 - .068
.031 - .039
.030 - .040
0.500
440 X 0.094
440
.205 - .219
.058 - .068
.031 - .039
.030 - .040
0.093
440 X 0.125
440
.205 - .219
.058 - .068
.031 - .039
.030 - .040
0.125
440 X 0.141
440
.205 - .219
.058 - .068
.031 - .039
.030 - .040
0.140
440 X 0.187
440
.205 - .219
.058 - .068
.031 - .039
.030 - .040
0.187
440 X 0.25
440
.205 - .219
.058 - .068
.031 - .039
.030 - .040
0.250
440 X 0.281
440
.205 - .219
.058 - .068
.031 - .039
.030 - .040
0.281
440 X 0.312
440
.205 - .219
.058 - .068
.031 - .039
.030 - .040
0.312
440 X 0.375
440
.205 - .219
.058 - .068
.031 - .039
.030 - .040
0.375
440 X 0.437
440
.205 - .219
.058 - .068
.031 - .039
.030 - .040
0.437
440 X 0.5
440
.205 - .219
.058 - .068
.031 - .039
.030 - .040
0.500
440 X 0.562
440.000
.205 - .219
.058 - .068
.031 - .039
.030 - .040
0.562
440 X 0.625
440
.205 - .219
.058 - .068
.031 - .039
.030 - .040
0.625
440 X 0.687
440
.205 - .219
.058 - .068
.031 - .039
.030 - .040
0.687
440 X 0.75
440
.205 - .219
.058 - .068
.031 - .039
.030 - .040
0.750
440 X 0.875
440
.205 - .219
.058 - .068
.031 - .039
.030 - .040
0.875
440 X 1
440
.205 - .219
.058 - .068
.031 - .039
.030 - .040
1.000
440 X 1.125
440
.205 - .219
.058 - .068
.031 - .039
.030 - .040
1.125
440 X 1.187
440
.205 - .219
.058 - .068
.031 - .039
.030 - .040
1.187
440 X 1.25
440
.205 - .219
.058 - .068
.031 - .039
.030 - .040
1.250
440 X 1.375
440
.205 - .219
.058 - .068
.031 - .039
.030 - .040
1.375
440 X 1.5
440
.205 - .219
.058 - .068
.031 - .039
.030 - .040
1.500
440 X 1.625
440
.205 - .219
.058 - .068
.031 - .039
.030 - .040
1.625
440 X 1.75
440
.205 - .219
.058 - .068
.031 - .039
.030 - .040
1.750
448 X 0.25
448
.205 - .219
.058 - .068
.031 - .039
.030 - .040
0.250
632 X 0.094
632
.256 - .270
.072 - .082
.039 - .048
.037 - .050
0.093
632 X 0.125
632
.256 - .270
.072 - .082
.039 - .048
.037 - .050
0.125
632 X 0.156
632
.256 - .270
.072 - .082
.039 - .048
.037 - .050
0.156
632 X 0.187
632
.256 - .270
.072 - .082
.039 - .048
.037 - .050
0.187
632 X 0.25
632
.256 - .270
.072 - .082
.039 - .048
.037 - .050
0.250
632 X 0.312
632
.256 - .270
.072 - .082
.039 - .048
.037 - .050
0.312
632 X 0.375
632
.256 - .270
.072 - .082
.039 - .048
.037 - .050
0.375
632 X 0.437
632
.256 - .270
.072 - .082
.039 - .048
.037 - .050
0.437
632 X 0.5
632
.256 - .270
.072 - .082
.039 - .048
.037 - .050
0.500
632 X 0.562
632
.256 - .270
.072 - .082
.039 - .048
.037 - .050
0.562
632 X 0.625
632
.256 - .270
.072 - .082
.039 - .048
.037 - .050
0.625
632 X 0.687
632
.256 - .270
.072 - .082
.039 - .048
.037 - .050
0.687
632 X 0.75
632
.256 - .270
.072 - .082
.039 - .048
.037 - .050
0.750
632 X 0.875
632
.256 - .270
.072 - .082
.039 - .048
.037 - .050
0.875
632 X 1
632
.256 - .270
.072 - .082
.039 - .048
.037 - .050
1.000
632 X 1.125
632
.256 - .270
.072 - .082
.039 - .048
.037 - .050
1.125
632 X 1.25
632
.256 - .270
.072 - .082
.039 - .048
.037 - .050
1.250
632 X 1.5
632
.256 - .270
.072 - .082
.039 - .048
.037 - .050
1.500
632 X 1.625
632
.256 - .270
.072 - .082
.039 - .048
.037 - .050
1.625
632 X 1.75
632
.256 - .270
.072 - .082
.039 - .048
.037 - .050
1.750
632 X 1.875
632
.256 - .270
.072 - .082
.039 - .048
.037 - .050
1.875
632 X 2
632
.256 - .270
.072 - .082
.039 - .048
.037 - .050
2.000
632 X 2.25
632
.256 - .270
.072 - .082
.039 - .048
.037 - .050
2.250
640 X 0.25
640
.256 - .270
.072 - .082
.039 - .048
.037 - .050
0.250
640 X 0.375
640
.256 - .270
.072 - .082
.039 - .048
.037 - .050
0.375
640 X 0.75
640
.256 - .270
.072 - .082
.039 - .048
.037 - .050
0.750
640 X 1
640
.256 - .270
.072 - .082
.039 - .048
.037 - .050
1.000
832 X 0.125
832
.306 - .322
.085 - .096
.045 - .054
.045 - .058
0.125
832 X 0.187
832
.306 - .322
.085 - .096
.045 - .054
.045 - .058
0.187
832 X 0.25
832
.306 - .322
.085 - .096
.045 - .054
.045 - .058
0.250
832 X 0.281
832
.306 - .322
.085 - .096
.045 - .054
.045 - .058
0.281
832 X 0.312
832
.306 - .322
.085 - .096
.045 - .054
.045 - .058
0.312
832 X 0.375
832
.306 - .322
.085 - .096
.045 - .054
.045 - .058
0.375
832 X 0.437
832
.306 - .322
.085 - .096
.045 - .054
.045 - .058
0.437
832 X 0.5
832
.306 - .322
.085 - .096
.045 - .054
.045 - .058
0.500
832 X 0.625
832
.306 - .322
.085 - .096
.045 - .054
.045 - .058
0.625
832 X 0.75
832
.306 - .322
.085 - .096
.045 - .054
.045 - .058
0.750
832 X 0.875
832
.306 - .322
.085 - .096
.045 - .054
.045 - .058
0.875
832 X 1
832
.306 - .322
.085 - .096
.045 - .054
.045 - .058
1.000
832 X 1.125
832
.306 - .322
.085 - .096
.045 - .054
.045 - .058
1.125
832 X 1.25
832
.306 - .322
.085 - .096
.045 - .054
.045 - .058
1.250
832 X 1.375
832
.306 - .322
.085 - .096
.045 - .054
.045 - .058
1.375
832 X 1.5
832
.306 - .322
.085 - .096
.045 - .054
.045 - .058
1.500
832 X 1.75
832
.306 - .322
.085 - .096
.045 - .054
.045 - .058
1.750
832 X 1.875
832
.306 - .322
.085 - .096
.045 - .054
.045 - .058
1.875
832 X 2
832
.306 - .322
.085 - .096
.045 - .054
.045 - .058
2.000
1024 X 0.125
1024
.357 - .373
.099 - .110
.050 - .060
.053 - .068
0.125
1024 X 0.187
1024
.357 - .373
.099 - .110
.050 - .060
.053 - .068
0.187
1024 X 0.25
1024
.357 - .373
.099 - .110
.050 - .060
.053 - .068
0.250
1024 X 0.312
1024
.357 - .373
.099 - .110
.050 - .060
.053 - .068
0.312
1024 X 0.375
1024
.357 - .373
.099 - .110
.050 - .060
.053 - .068
0.375
1024 X 0.5
1024
.357 - .373
.099 - .110
.050 - .060
.053 - .068
0.500
1024 X 0.625
1024
.357 - .373
.099 - .110
.050 - .060
.053 - .068
0.625
1024 X 0.75
1024
.357 - .373
.099 - .110
.050 - .060
.053 - .068
0.750
1024 X 1
1024
.357 - .373
.099 - .110
.050 - .060
.053 - .068
1.000
1024 X 1.25
1024
.357 - .373
.099 - .110
.050 - .060
.053 - .068
1.250
1024 X 1.5
1024
.357 - .373
.099 - .110
.050 - .060
.053 - .068
1.500
1032 X 0.125
1032
.357 - .373
.099 - .110
.050 - .060
.053 - .068
0.125
1032 X 0.187
1032
.357 - .373
.099 - .110
.050 - .060
.053 - .068
0.187
1032 X 0.25
1032
.357 - .373
.099 - .110
.050 - .060
.053 - .068
0.250
1032 X 0.312
1032
.357 - .373
.099 - .110
.050 - .060
.053 - .068
0.312
1032 X 0.375
1032
.357 - .373
.099 - .110
.050 - .060
.053 - .068
0.375
1032 X 0.437
1032
.357 - .373
.099 - .110
.050 - .060
.053 - .068
0.437
1032 X 0.5
1032
.357 - .373
.099 - .110
.050 - .060
.053 - .068
0.500
1032 X 0.625
1032
.357 - .373
.099 - .110
.050 - .060
.053 - .068
0.625
1032 X 0.75
1032
.357 - .373
.099 - .110
.050 - .060
.053 - .068
0.750
1032 X 0.812
1032
.357 - .373
.099 - .110
.050 - .060
.053 - .068
0.812
1032 X 0.875
1032
.357 - .373
.099 - .110
.050 - .060
.053 - .068
0.875
1032 X 1
1032
.357 - .373
.099 - .110
.050 - .060
.053 - .068
1.000
1032 X 1.062
1032
.357 - .373
.099 - .110
.050 - .060
.053 - .068
1.062
1032 X 1.25
1032
.357 - .373
.099 - .110
.050 - .060
.053 - .068
1.250
1032 X 1.5
1032
.357 - .373
.099 - .110
.050 - .060
.053 - .068
1.500
1032 X 1.75
1032
.357 - .373
.099 - .110
.050 - .060
.053 - .068
1.750
1032 X 2
1032
.357 - .373
.099 - .110
.050 - .060
.053 - .068
2.000
348 X 0.25
348
.130 - .142
.038 - .046
.019 - .026
.018 - .027
0.250
1/4-20 X 0.25
1/4-20
.473 - .492
.130 - .144
.064 - .075
.070 - .087
0.250
1/4-20 X 0.312
1/4-20
.473 - .492
.130 - .144
.064 - .075
.070 - .087
0.312
1/4-20 X 0.375
1/4-20
.473 - .492
.130 - .144
.064 - .075
.070 - .087
0.375
1/4-20 X 0.5
1/4-20
.473 - .492
.130 - .144
.064 - .075
.070 - .087
0.500
1/4-20 X 0.625
1/4-20
.473 - .492
.130 - .144
.064 - .075
.070 - .087
0.625
1/4-20 X 0.75
1/4-20
.473 - .492
.130 - .144
.064 - .075
.070 - .087
0.750
1/4-20 X 0.875
1/4-20
.473 - .492
.130 - .144
.064 - .075
.070 - .087
0.875
1/4-20 X 1
1/4-20
.473 - .492
.130 - .144
.064 - .075
.070 - .087
1.000
1/4-20 X 1.25
1/4-20
.473 - .492
.130 - .144
.064 - .075
.070 - .087
1.250
1/4-20 X 1.5
1/4-20
.473 - .492
.130 - .144
.064 - .075
.070 - .087
1.500
1/4-20 X 1.75
1/4-20
.473 - .492
.130 - .144
.064 - .075
.070 - .087
1.750
1/4-20 X 2
1/4-20
.473 - .492
.130 - .144
.064 - .075
.070 - .087
2.000
1/4-20 X 2.5
1/4-20
.473 - .492
.130 - .144
.064 - .075
.070 - .087
2.500
1/4-28 X 0.187
1/4-28
.473 - .492
.130 - .144
.064 - .075
.070 - .087
0.187
1/4-28 X 0.25
1/4-28
.473 - .492
.130 - .144
.064 - .075
.070 - .087
0.250
1/4-28 X 0.375
1/4-28
.473 - .492
.130 - .144
.064 - .075
.070 - .087
0.375
1/4-28 X 0.625
1/4-28
.473 - .492
.130 - .144
.064 - .075
.070 - .087
0.625
1/4-28 X 0.75
1/4-28
.473 - .492
.130 - .144
.064 - .075
.070 - .087
0.750
1/4-28 X 1
1/4-28
.473 - .492
.130 - .144
.064 - .075
.070 - .087
1.000
5/16-18 X 0.875
5/16-18
.594 - .615
.162 - .178
.072 - .084
.085 - .106
0.875
1024 X 2.25
1024
.357 - .373
.099 - .110
.050 - .060
.053 - .068
2.250
1/2-13 X 1
1/2-13
.958 - .987
.260 - .281
.091 - .106
.131 - .161
1.000
1/2-13 X 0.75
1/2-13
.958 - .987
.260 - .281
.091 - .106
.131 - .161
0.750
1/4-28 X 0.438
1/4-28
0.473 - 0.492
0.130 - 0.144
0.064 - 0.075
0.070 - 0.087
0.437 (+ 0.000/- 0.030)
1/4-28 x 0.500
1/4-28
0.473 - 0.492
0.130 - 0.144
0.064 - 0.075
0.070 - 0.087
0.500 (+ 0.000/- 0.030)
1/4-20 X 3
1/4-20
0.473 - 0.492
0.130 - 0.144
0.064 - 0.075
0.070 - 0.087
3.000 (+ 0.000/- 0.090)
256 X 13/16
256
0.155 - 0.167
0.045 - 0.053
0.023 - 0.031
0.022 - 0.031
0.812 (+ 0.000/- 0.030)
1024 X 3
1024
0.357 - 0.373
0.099 - 0.110
0.050 - 0.060
0.053 - 0.068
3.000 (+ 0.000/- 0.090)
832 X 1 11/16
832
0.306 - 0.322
0.085 - 0.096
0.045 - 0.054
0.045 - 0.058
1.687 (+ 0.000/- 0.060)
540 X 1 1/4
540
0.231 - 0.245
0.065 - 0.075
0.034 - 0.043
0.034 - 0.045
1.250 (+ 0.000/- 0.060)
0-80 X 1/8
0-80
0.104 - 0.116
0.031 - 0.039
0.016 - 0.023
0.014 - 0.022
0.125 (+ 0.000/- 0.020)
0-80 X 1/4
0-80
0.107 - 0.119
0.032 - 0.040
0.017 - 0.024
0.014 - 0.022
0.250 (+ 0.000/- 0.020)
0-80 X 3/16
0-80
0.104 - 0.116
0.031 - 0.039
0.016 - 0.023
0.014 - 0.022
0.187 (+ 0.000/- 0.020)
