Polyurethane Hex Flange Screw

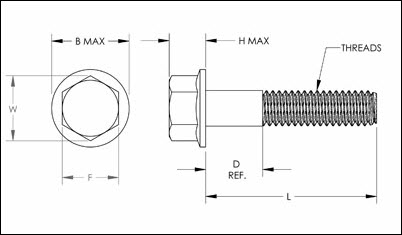

Polyurethane Hex Flange Screw Diagrammatic

Description
B
H
F
W
D
Thread Size
Length
Quote
Poly Hex Flange Screw
0.560 (MAX)
0.280 (MAX)
0.367 - 0.375
0.409 - 0.433
N/A
1/4-20
0.625 (+ 0.020/- 0.030)
Poly Hex Flange Screw
0.560 (MAX)
0.280 (MAX)
0.367 - 0.375
0.409 - 0.433
N/A
1/4-20
0.875 (+ 0.020/- 0.030)
Poly Hex Flange Screw
1.330 (MAX)
0.620 (MAX)
0.906 - 0.938
1.033 - 1.083
N/A
5/8-11
2.500 (+ 0.060/- 0.080)
Poly Hex Flange Screw
0.810 (MAX)
0.390 (MAX)
0.544 - 0.562
0.620 - 0.650
3.250* (ref.)
3/8-16
4.500 (+ 0.060/- 0.100)
Poly Hex Flange Screw
1.330 (MAX)
0.620 (MAX)
0.906 - 0.938
1.083
3.000* (ref.)
5/8-11
6.000 (+/- 0.100)
Poly Hex Flange Screw
.810 (MAX)
.390 (MAX)
0.544 - 0.562
0.620 - 0.650
N/A* (ref.)
3/8-16
1.000 (+ 0.020/- 0.030)
Poly Hex Flange Screw
.810 (MAX)
.390 (MAX)
0.544 - 0.562
0.620 - 0.650
N/A* (ref.)
3/8-16
0.500 (+ 0.020/- 0.030)
Poly Hex Flange Screw
.810 (MAX)
.390 (MAX)
0.544 - 0.562
0.620 - 0.650
2.250* (ref.)
3/8-16
3.500 (+ 0.040/- 0.060)
