Nylon Wing Nuts

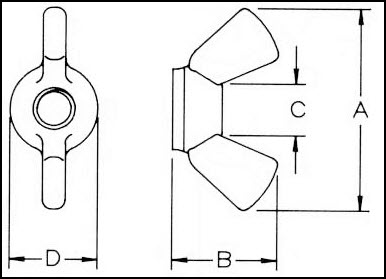

Nylon Wing Nuts Diagrammatic



Description
A
B
C
D
Quote
440
0.900* (ref.)
0.480 (+/- 0.010)
0.230 (+/- 0.010)
0.400 (+/- 0.010)
RFQ
632
0.900* (ref.)
0.480 (+/- 0.010)
0.230 (+/- 0.010)
0.400 (+/- 0.010)
RFQ
832
0.900* (ref.)
0.480 (+/- 0.010)
0.230 (+/- 0.010)
0.400 (+/- 0.010)
RFQ
1024
0.900* (ref.)
0.480 (+/- 0.010)
0.230 (+/- 0.010)
0.400 (+/- 0.010)
RFQ
1024
1.090* (ref.)
0.630 (+/- 0.010)
0.300 (+/- 0.010)
0.560 (+/- 0.010)
RFQ
1032
0.900* (ref.)
0.480 (+/- 0.010)
0.230 (+/- 0.010)
0.400 (+/- 0.010)
RFQ
1032
1.090* (ref.)
0.630 (+/- 0.010)
0.300 (+/- 0.010)
0.560 (+/- 0.010)
RFQ
1/4-20
1.360* (ref.)
0.710 (+/- 0.010)
0.360 (+/- 0.010)
0.650 (+/- 0.010)
RFQ
1/4-20
1.090* (ref.)
0.630 (+/- 0.010)
0.300 (+/- 0.010)
0.560 (+/- 0.010)
RFQ
1/4-28
1.360* (ref.)
0.710 (+/- 0.010)
0.360 (+/- 0.010)
0.650 (+/- 0.010)
RFQ
1/4-28
1.090* (ref.)
0.630 (+/- 0.010)
0.300 (+/- 0.010)
0.560 (+/- 0.010)
RFQ
5/16-18
1.370* (ref.)
0.720 (+/- 0.010)
0.390 (+/- 0.010)
0.640 (+/- 0.010)
RFQ
3/8-16
1.370* (ref.)
0.720 (+/- 0.010)
0.390 (+/- 0.010)
0.640 (+/- 0.010)
RFQ
3/8-24
1.370* (ref.)
0.720 (+/- 0.010)
0.390 (+/- 0.010)
0.640 (+/- 0.010)
RFQ
7/16-14
1.760* (ref.)
0.900 (+/- 0.010)
0.560 (+/- 0.010)
0.850 (+/- 0.010)
RFQ
1/2-13
1.760* (ref.)
0.900 (+/- 0.010)
0.560 (+/- 0.010)
0.850 (+/- 0.010)
RFQ
9/16-12
1.760* (ref.)
0.900 (+/- 0.010)
0.560 (+/- 0.010)
0.850 (+/- 0.010)
RFQ
