Nylon Locking Deco Wing Nuts

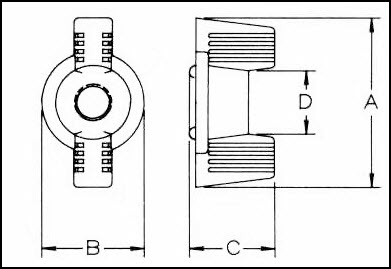

Nylon Locking Deco Wing Nuts Diagrammatic



Description
A
B
C
D
Quote
440
0.625 (+/- 0.015)
0.375 (+/- 0.015)
0.312 (+/- 0.015)
0.234 (+/- 0.015)
632
0.625 (+/- 0.015)
0.375 (+/- 0.015)
0.312 (+/- 0.015)
0.234 (+/- 0.015)
832
0.625 (+/- 0.015)
0.375 (+/- 0.015)
0.312 (+/- 0.015)
0.234 (+/- 0.015)
1024
0.875 (+/- 0.015)
0.500 (+/- 0.015)
0.437 (+/- 0.015)
0.312 (+/- 0.015)
1032
0.875 (+/- 0.015)
0.500 (+/- 0.015)
0.437 (+/- 0.015)
0.312 (+/- 0.015)
1/4-20
1.171 (+/- 0.015)
0.625 (+/- 0.015)
0.531 (+/- 0.015)
0.375 (+/- 0.015)
5/16-18
1.562 (+/- 0.015)
0.984 (+/- 0.015)
0.453 (+/- 0.015)
N/A
