Nylon Hex Nuts

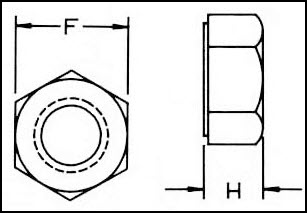

Nylon Hex Nuts Diagrammatic



Description
F
H
Quote
256
0.180 (+/- 0.010)
0.070 (+/- 0.010)
RFQ
348
0.180 (+/- 0.010)
0.070 (+/- 0.010)
RFQ
440
0.250 (+/- 0.010)
0.100 (+/- 0.010)
RFQ
632
0.305 (+/- 0.010)
0.120 (+/- 0.010)
RFQ
640
0.305 (+/- 0.010)
0.120 (+/- 0.010)
RFQ
832
0.335 (+/- 0.010)
0.130 (+/- 0.010)
RFQ
1024
0.365 (+/- 0.010)
0.135 (+/- 0.010)
RFQ
1032
0.365 (+/- 0.010)
0.135 (+/- 0.010)
RFQ
1224
0.425 (+/- 0.010)
0.207 (+/- 0.010)
RFQ
1-8
1.470 (+/- 0.010)
0.870 (+/- 0.010)
RFQ
1/4-20
0.425 (+/- 0.010)
0.235 (+/- 0.010)
RFQ
1/4-28
0.425 (+/- 0.010)
0.235 (+/- 0.010)
RFQ
5/16-18
0.500 (+/- 0.010)
0.270 (+/- 0.010)
RFQ
5/16-24
0.500 (+/- 0.010)
0.270 (+/- 0.010)
RFQ
3/8-16
0.560 (+/- 0.010)
0.330 (+/- 0.010)
RFQ
3/8-24
0.560 (+/- 0.010)
0.330 (+/- 0.010)
RFQ
3/8-32
0.560 (+/- 0.010)
0.330 (+/- 0.010)
RFQ
7/16-14
0.685 (+/- 0.010)
0.380 (+/- 0.010)
RFQ
7/16-20
0.685 (+/- 0.010)
0.380 (+/- 0.010)
RFQ
1/2-13
0.750 (+/- 0.010)
0.430 (+/- 0.010)
RFQ
1/2-20
0.750 (+/- 0.010)
0.430 (+/- 0.010)
RFQ
5/8-11
0.925 (+/- 0.010)
0.550 (+/- 0.010)
RFQ
5/8-18
0.925 (+/- 0.010)
0.550 (+/- 0.010)
RFQ
11/16-27
1.000 (+/- 0.010)
0.250 (+/- 0.010)
RFQ
3/4-10
1.100 (+/- 0.010)
0.640 (+/- 0.010)
RFQ
7/8-9
1.280 (+/- 0.010)
0.750 (+/- 0.010)
RFQ
