Nylon Hex Jam Nuts

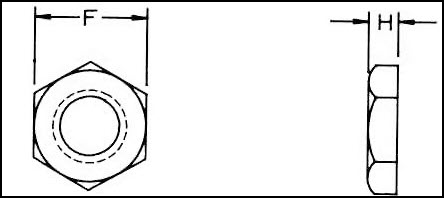

Nylon Hex Jam Nuts Diagrammatic



Description
F
H
Quote
1-8
1.480 (+/-.010)
0.410 (+/-.010)
RFQ
1/8-27
0.560 (+/-.010)
0.110 (+/-.010)
RFQ
1/4-18
0.740 (+/-.010)
0.187 (+/-.010)
RFQ
1/4-18
0.687 (+/-.010)
0.225 (+/-.010)
RFQ
5/16-18
0.500 (+/-.010)
0.190 (+/-.010)
RFQ
5/16-24
0.500 (+/-.010)
0.190 (+/-.010)
RFQ
3/8-16
0.670 (+/-.010)
0.218 (+/-.010)
RFQ
3/8-16
0.500 (+/-.010)
0.125 (+/-.010)
RFQ
3/8-18
1.000 (+/-.010)
0.280 (+/-.010)
RFQ
3/8-18
1.000 (+/-.010)
0.280 (+/-.010)
RFQ
3/8-24
0.500 (+/-.010)
0.125 (+/-.010)
RFQ
3/8-32
0.500 (+/-.010)
0.125 (+/-.010)
RFQ
7/16-14
0.687 (+/-.010)
0.375 (+/-.010)
RFQ
7/16-20
0.687 (+/-.010)
0.250 (+/-.010)
RFQ
15/32-32
0.625 (+/-.010)
0.125 (+/-.010)
RFQ
1/2-13
0.687 (+/-.010)
0.220 (+/-.010)
RFQ
1/2-14
1.250 (+/-.010)
0.340 (+/-.010)
RFQ
1/2-14
1.250 (+/-.010)
0.340 (+/-.010)
RFQ
1/2-24
0.687 (+/-.010)
0.220 (+/-.010)
RFQ
1/2-28
0.660 (+/-.010)
0.125 (+/-.010)
RFQ
9/16-18
0.750 (+/-.010)
0.250 (+/-.010)
RFQ
9/16-24
0.750 (+/-.010)
0.250 (+/-.010)
RFQ
5/8-11
0.937 (+/-.010)
0.375 (+/-.010)
RFQ
5/8-18
0.937 (+/-.010)
0.375 (+/-.010)
RFQ
3/4-10
1.120 (+/-.010)
0.250 (+/-.010)
RFQ
3/4-14
1.480 (+/-.010)
0.410 (+/-.010)
RFQ
3/4-14
1.480 (+/-.010)
0.410 (+/-.010)
RFQ
3/4-16
1.120 (+/-.010)
0.250 (+/-.010)
RFQ
3/4-27
1.000 (+/-.010)
0.125 (+/-.010)
RFQ
7/8-14
1.250 (+/-.010)
0.340 (+/-.010)
RFQ
7/8-20
1.000 (+/-.010)
0.125 (+/-.010)
RFQ
1/2-20
0.687 (+/- 0.010)
0.220 (+/- 0.010)
RFQ
