Nylon Cap Nuts

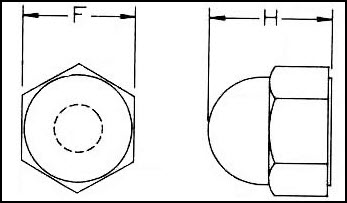

Nylon Cap Nuts Diagrammatic



Description
F
H
Quote
440
0.250 (+/- 0.010)
0.280* (ref.)
632
0.305 (+/- 0.010)
0.345* (ref.)
832
0.330 (+/- 0.010)
0.375* (ref.)
1024
0.365 (+/- 0.010)
0.400* (ref.)
1032
0.365 (+/- 0.010)
0.400* (ref.)
1/4-20
0.425 (+/- 0.010)
0.475* (ref.)
1/4-28
0.425 (+/- 0.010)
0.475* (ref.)
5/16-18
0.500 (+/- 0.010)
0.530* (ref.)
5/16-24
0.500 (+/- 0.010)
0.530* (ref.)
3/8-16
0.565 (+/- 0.010)
0.620* (ref.)
3/8-24
0.565 (+/- 0.010)
0.620* (ref.)
1/2-13
0.750 (+/- 0.010)
0.810* (ref.)
5/8-11
0.935 (+/- 0.010)
0.970* (ref.)
1/2-20
0.750 (+/- 0.010)
0.810* (ref.)
3/8-32
0.565 (.010)
0.620* (ref.)
1/4-18
0.750 (+/- 0.010)
0.810* (ref.)
7/16-14
0.750 (+/- 0.010)
0.810* (ref.)
