Metric Hex Nut With Washer Face

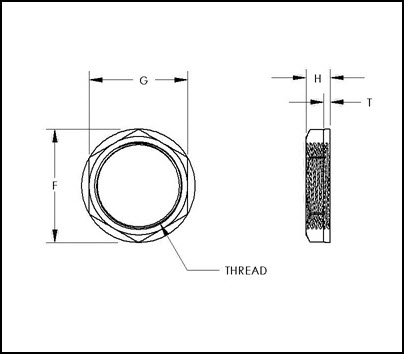

Metric Hex Nut With Washer Face Diagrammatic



Description
G
F
H
T
Thread Gage
Quote
M32 X 1.5
42.000 (+/- 0.38)
36.450 (+/- 0.38)
9.020 (+/- 0.38)
2.540 (+/- 0.20)
M32
RFQ
M16 X 1.5
22.000 (+/- 0.38)
18.920 (+/- 0.38)
6.700 (+/- 0.38)
2.000 (+/- 0.20)
M16
RFQ
M25 X 1.5
32.000 (+/- 0.38)
27.940 (+/- 0.38)
9.000 (+/- 0.38)
2.500 (+/- 0.20)
M25
RFQ
M20 X 1.5
27.000 (+/- 0.38)
22.860 (+/- 0.38)
8.000 (+/- 0.38)
2.380 (+/- 0.20)
M20
RFQ
M8 X 1.25
13.000 (+/- 0.38)
17.000 (+/- 0.38)
8.000 (+/- 0.38)
1.520 (+/- 0.20)
M8
RFQ
M10 X 1.50
16.000 (+/-.38)
22.000 (+/-.38)
10.000 (+/-.38)
1.910 (+/-.20)
M10
RFQ
M12 X 1.75
19.000 (+/-.38)
27.000 (+/-.38)
14.500 (+/-.38)
3.050 (+/-.20)
M12
RFQ
M3 X .50
5.500 (+/- 0.38)
6.600 (+/- 0.38)
3.100 (+/- 0.38)
0.410 (+/- 0.20)
M3 x .50
RFQ
M4 X .70
7.000 (+/- 0.38)
8.800 (+/- 0.38)
3.400 (+/- 0.38)
0.760 (+/- 0.20)
M4
RFQ
M5 X .80
7.900 (+/- 0.38)
9.800 (+/- 0.38)
5.200 (+/- 0.38)
0.940 (+/- 0.20)
M5
RFQ
M16 X 2.00
24.000 (+/- 0.38)
39.000 (+/- 0.38)
19.500 (+/- 0.38)
3.180 (+/- 0.20)
M16 x 2.0
RFQ
M6 X 1.00
10.000 (+/- 0.38)
13.000 (+/- 0.38)
6.000 (+/- 0.38)
1.020 (+/- 0.20)
M6 x 1.0
RFQ
